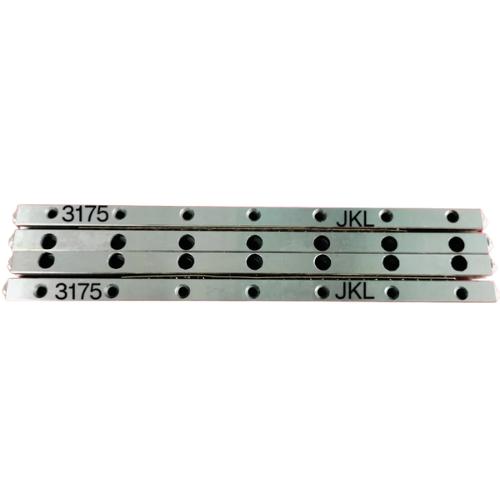

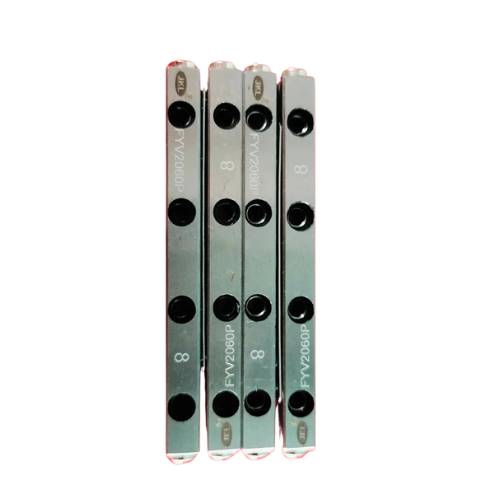

JKL CROSS ROLLER GUIDE HIGHLY RIGID LM SYSTEM WHOSE ROLLER CAGE HOLDING PRECISION ROLLERS ORTHOGONAALY ALIGHNED OE AFTER ANOTHER TRAVELS BY HALF THE STROKE ON A V SHAPED GROOVED ON RAIL

MACHINE USING THE LM SYSTEM GENERAL INDUSTRIAL MACHINERY

R 3175 X 24 Z MAXIMUM STROKE 108
TOTAL HEIGHT 18 MM
ROLLER DIA 3 X 3 -
PITCH -5 MM
CAGE LENGTH 121

Lubrication

1. Thoroughly wipe off anti-rust oil and feed lubricant before using the product.
2. When lubricating the product, apply grease directly on the raceway and stroke the product several times to let the grease spread inside.
3. Do not mix different lubricants. Mixing greases using the same type of thickening agent may still cause adverse interaction between the two greases if they use different additives, etc.
4. When using the product in locations exposed to constant vibrations or in special environments such as clean rooms, vacuum and low/high temperature, use the grease appropriate for the specification/environment.
5. The consistency of grease changes according to the temperature. Take note that the slide resistance of the Cross-Roller Guide/Ball Guide also changes as the consistency of grease changes.
6. After lubrication, the slide resistance of the Cross-Roller Guide/Ball Guide may increase due to the agitation resistance of grease. Be sure to perform a break-in to let the grease spread fully, before operating the machine.
7. Excess grease may scatter immediately after lubrication, so wipe off scattered grease as necessary.
8. The properties of grease deteriorate and its lubrication performance drops over time, so grease must be checked and added properly according to the use frequency of the machine.
9. The greasing interval varies depending on the use condition and service environment. Set the final lubrication interval/amount based on the actual machine.
