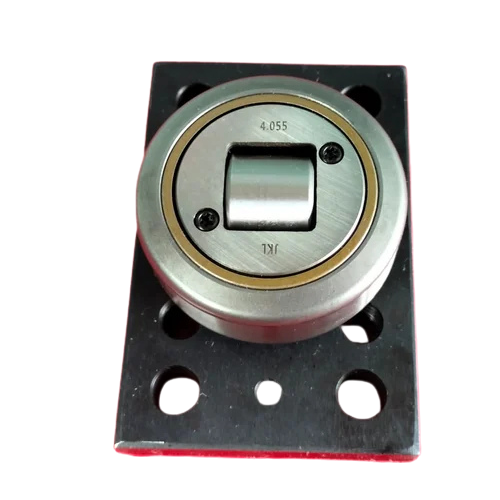

4.055 WITH RECTANGULAR PLATE JKL COMBINED BEARING
ID 35 X OD 70.1 XHEIGHT 44

WEIGHT -0.80 KG
MAXIMUM BEARING LOADS-
RADIAL DYNAMIC 45.5 KN STATIC 51 KN
AXIAL DYNAMIC 13 KN  STATIC 14 KN
THIS IS WITHOUT PLATE


WITH PLATE
SYSTEM MAIMUM STATIC LOADS RADIAL 12.4 KN / 1.39 US TON FORCE

AXIAL 3.87 KN/0.43 US TON FORCE



CAM ROLLER PRODUCTS FROM JK LINEAR MOTION,SUCH AS HEAVY RAIL PROVIDE THE INDUSTRIAL STRENGTH AND CANTILEVER LOAD CAPABILITIES REQUIRED IN HEAVY DUTY LIFT SYSTEMS.

THE ECONOMICAL HEAVY RAIL GUIDE SYSTEMS OFFER A LIFETIME OF DURABILITY UNDER CONTINUOUS USE. THE EASILY INTERCHANGEABLE BEARING COMPONENTS PROVIDE EVEN DISPERSION OF FORCES IN THE RAILS FOR LONGER SYSTEM LIFE AND STABILITY.
